3000W SUNSEED Series Single-Phase Dual MPPT String Inverter , On Grid Solar Energy Inverter

FOB Reference Price:Get Latest Price
US $460-510 / Pieces | 1 Piece/Pieces the more the cheaper (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JingFuYuan
Model Number:
SUNSEED -3000TL
Output Power:
3000W
Output Type:
Single
Size:
358*145*430mm
Weight:
16.5kgs
Input Voltage:
100~450V
Output Voltage:
110V/220V/230V/240V
Type:
DC/AC Inverters
Output Frequency:
50Hz/60Hz
Output Current:
13A
Colar:
White
Degree of protection:
IP65
MPPT operating range:
100~450V
Number of inputs:
2
Number of MPPT trackers:
2
Max input Current:
2*11.3A
Display:
LED + LCD
Warranty:
5 Years
Certificate:
CE,EN62109,BS EN61000,G83/2
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month follow your need
Packaging & Delivery
Packaging Details
pack in Carton.
Port
Shenzhen
Lead Time :
5 days after receive payment
Product Details

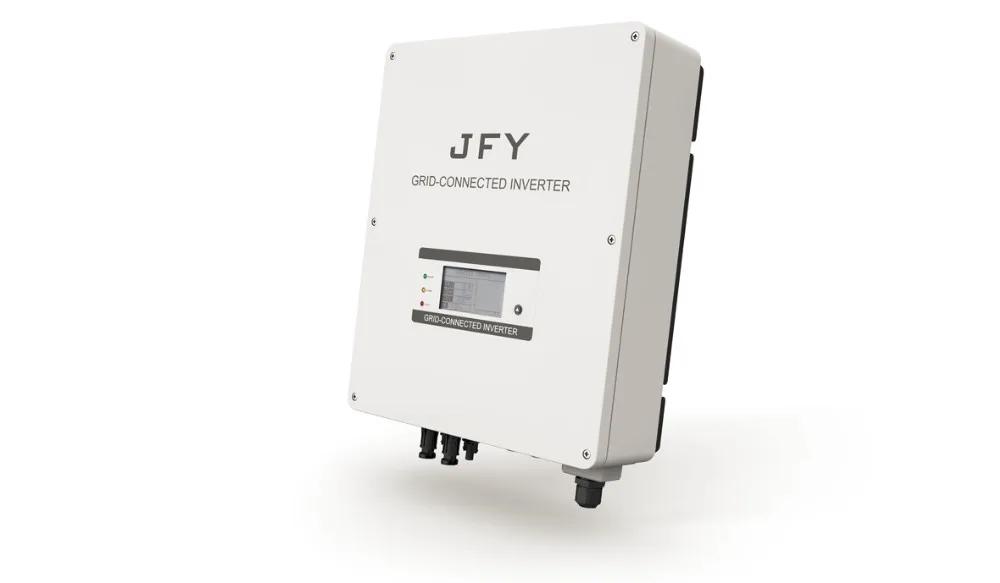

SUNSEED Series Single-Phase Dual Mppt String Inverter

Features

High performance string inverters
 From 3.0kW to 5.0kW
 Wide PV input voltage range
 Digital control technology
 Rapid MPPT tracking technology
 Two MPPT trackers
 Transformerless design with higher operation efficiency
 Excellent thermal performance
 High overload capability
 Reactive Power Control and Active Power Control function
Full data display and communications

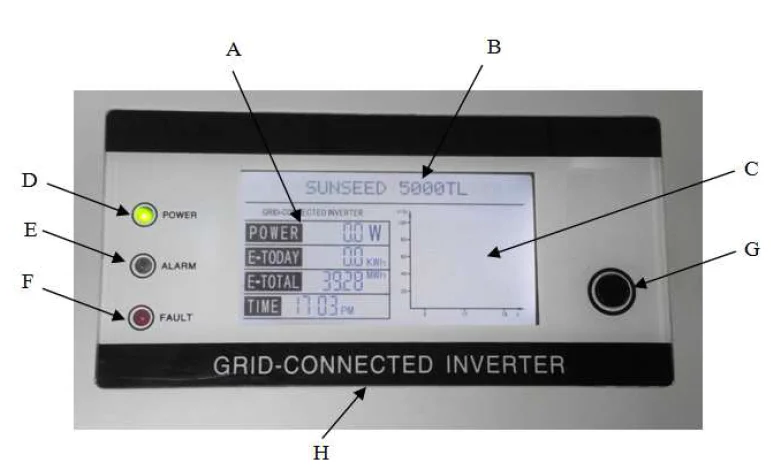

 Large screen display
 Bright LED indicators imply system status at a glance
 Different monitoring solutions
 Integrated RS232 serial communications

Easy and affordable to install
 Lightweight and compact size
 Transformerless design
 Low maintenance expense
 Includes a lightweight portable bracket simplifying installation
 Firm IP65 inverter enclosure allows outdoor application

Certificates

TUV, SAA, CE, CQC, AS4777.2/3, AS/NZS 3100,VDE 0126-1-1, EN62109-1/2, G83/2, G59/3,
CNCA/CTS0004-2009A, CNCA/CTS0006-2010, EN61000-6-1/2/3/4, EN62109-1/2, RD1663, C10-11

Product Introduction
Product Parameters
MODEL(SUNSEED)
3000TL
4000TL
5000TL
Input (DC side)
Max. DC Input Power(W)
3300
4160
5200
Max DC Voltage(Vdc)
500
MPPT Operating Range(Vdc)
100~450
Number of Parallel Inputs
2
Number of MPP Trackers
2
Max.input current of per Mppt(W)
2000
2300

Max. Input Current(A)
2*11.3
2*13
2*15
Output (AC side)
Nominal Output Power(W)
3000
4000
5000
Max. Output Power(W)
3000
4000
5000
Nominal Output Current(A)
13.0
15.7
21.5
Max. Output Current(A)
15.0
16.0
25
Nominal AC Output Voltage(Vac)
230
AC Output voltage range (Vac)*
185~265
Norminal AC grid frequency (Hz)
50
50
50
AC Grid frequency range (Hz)*
50±5
Power Factor (cosφ)
>0.99
THDI
<3%(at nominal output power)
System
Max.efficiency
97.2%
97.1%
97.0%
Euro.efficiency
96.5%
96.8%
96.4%
MPPT. efficiency
99.8%
99.6%
99.8%
Gernaral Data
Operating Temperature(℃)
-25~+60
Noise typical[dB(A)]
≤25
Power consumtion at night (W)
0
Electrical Isolation
Transformerless
Cooling Concept
Natural Cooling
Degree of protection
IP65
Communication
RS-232 (WIFI Optional )
Dimension (W×D×H)(mm)
358*145*430
Weight (Kg)
16.5
18
18
*AC grid voltage range and frequency range depend on local standards.
