5KW SUNTWINS Series Dual MPPT Solar Africa Inverter On Grid

FOB Reference Price:Get Latest Price
US $760-840 / Piece | 1 Piece/Pieces the more the cheaper (Min. Order)
Supply Ability:
100000 Piece/Pieces per Month follow your need
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JingFuYuan
Model Number:
SUNTWINS-5000TL
Output Power:
5000W
Output Type:
Dual
Size:
345*152*435mm
Weight:
18kgs
Input Voltage:
100~450V
Output Voltage:
110V/220V/230V/240V
Type:
DC/AC Inverters
Output Frequency:
50Hz/60Hz
Output Current:
21A
Colar:
White
Degree of protection:
IP65
MPPT operating range:
100~450V
Number of inputs:
2
Number of MPPT trackers:
2
Max input Current:
2*15A
Display:
LED + LCD
Warranty:
5 Years
Certificate:
CE,EN62109,BS EN61000,G83/2
Packaging & Delivery
Packaging Details
pack in Carton.
Delivery Time
5 days after receive payment
Product Details

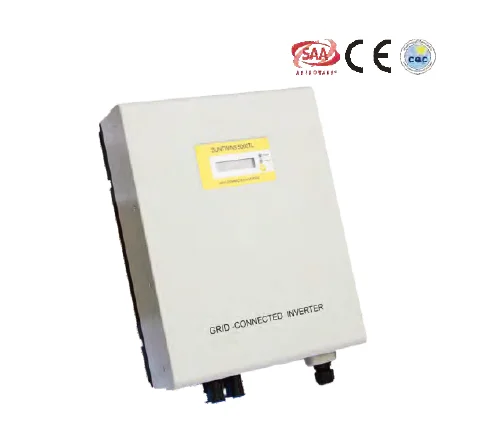

SUNTWINS Series Dual MPPT String Inverter

Features

High performance string inverters
 From 3.0KW to 5.0KW
 Wide PV input voltage range
 Rapid MPPT tracking technology
 Two MPPT trackers
 Superior PV energy harvest
 Transformerless design with higher operation efficiency
 Excellent thermal performance
 High overload capability under most ambient conditions
Easy and affordable to install
 Lightweight and compact size
 Includes a lightweight portable bracket simplifying installation
 Firm IP65 inverter enclosure allows outdoor application

Full data display and communications
 LCD display energy data
 Bright LED indicators imply system status at a glance
 PC software for remote monitoring and system troubleshooting
 Integrated RS232 serial communications

Cost advantages
 Transformerless design cutting down the cost
 Light weight and small dimension, reducing shipping cost
 IP65 protection degree, suitable for outdoor installation, reducing construction cost
 Low maintenance expense

Product Introduction
Product Parameters
MODEL(SUNTWINS)
3300TL
4000TL
5000TL
Input (DC side)
Max Input Power of per MPPT (W)
2000
2300
3000
Max. DC Input Power(W)
3450
4160
5200
Max DC Voltage(Vdc)
500
Start voltage (Vdc )
150
MPPT Operating Range(Vdc)
100~450
Number of Parallel Inputs
2
Number of MPP Trackers
2
Max. Input Current(A)
2*10
2*13
2*15
Output (AC side)
Nominal Output Power(W)
3300
4000
5000
Max. Output Power(W)
3300
4000
5000
Nominal Output Current(A)
14.3
17.4
21.6
Max. Output Current(A)
16.5
20
25
Nominal AC Output Voltage(Vac)
230
AC Output voltage range (Vac)*
185~265
AC Grid frequency range (Hz)*
50±5
Power Factor (cosφ)
>0.99
THDI
<3%(at nominal output power)
System
Max.efficiency
97.3%
97.5%
97.5%
Euro.efficiency
96.5%
96.8%
96.7%
MPPT. efficiency
99.6%
99.6%
99.6%
Operating Temperature(℃)
-25~+60
Noise typical[dB(A)]
≤25
Operating Consumption(W)
0
Electrical Isolation
Transformerless
Cooling Concept
Natural Cooling
Protect Level
IP65
Grid protection
According to G83/2
Communication
RS-232 (WIFI Optional )
Dimension (W×D×H)(mm)
345*152*435
Weight (Kg)
16.5
18
18
*AC grid voltage range and frequency range depend on local standards.
