JFY 200w 500w 1000w 2000w 5000w 10kw 20kw 30kw 50kw 100kw 120kw 160kw off grid solar power system

FOB Reference Price:Get Latest Price
US $10,000-1,000,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JingFuYuan
Model Number:
solar power system
Specification:
Normal
Application:
Commercial
Output Voltage (V):
220/380
Load Power (W):
200~160000
Solar Power (W):
according to your requirement
Work Time (h):
5~24
System voltage:
24v/48v/96v/220v/348v/384v
Solar charge controller type:
MPPT
pv combiner box:
built-in in solar charger
Max input power:
As large as required
City power & generator input:
Optional
Transformer:
Yes
output wave:
pure sine wave
All in one design:
hybrid solar charger & inverter
Warranty:
2-5years
Certification:
CE
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box packing.
Port
Shenzhen

JFY 200w 500w 1000w 2000w 5000w 10kw 20kw 30kw 50kw 100kw 120kw  160kw off grid solar power system

Product Description

 As a leading on/off solar inverter manufacture in China, JFY is cooperating with leading solar panel and storage battery manufacture in China to offer total off grid solar system with best use of solar panel/battery. The off grid solar system could be used where there is not enough city power but with enough sunlight. Availble output power power could be from 200w to 160kw, AC 220v/230v single phase, 380v/400v/415v three phase. We could design the system for you according to your requirement if you could tell us following information:

1. Load working voltage/phase/frequency

2. Maximum load power( must inform us once there is any load with motor, Eg: air-conditioner, fridge, pump)

3. Load working hours per day

4. Autonomy days/ battery backup days

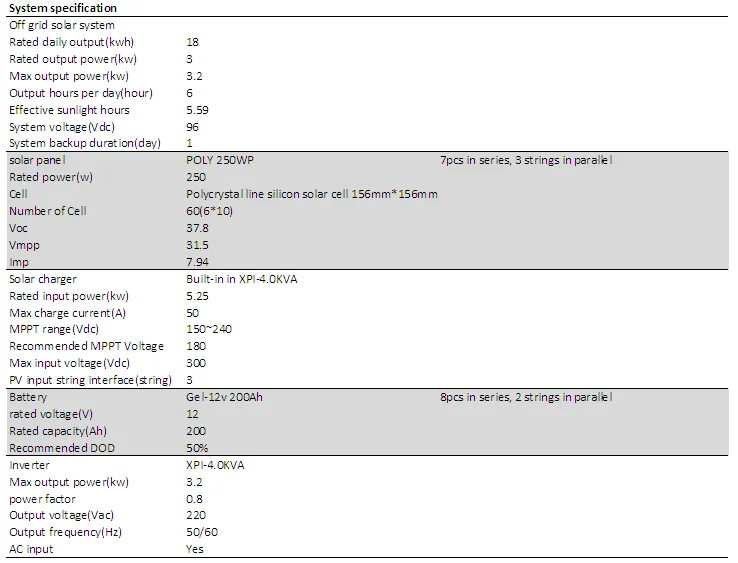

Demo system proposal:

System requirement
Output phaseSingple phase Output voltage(v)220
Linear load power(w)3000 System voltage(v)96
Inductive load power(w)0 Max power(w)3000
working hours perday(h)6 Total Power(w)3000
Installation countryPhilippines sunlight hours perday5.59
Backup days(day)1
Bypass AC input(optional)Yes
ItemsDescriptionquantityseriesparallelrequiredsupportprice(usd)amount(usd)
inverterXPI-4.0KVA1    ******
solar chargerBuilt-in in XPI-4.0KVA1    ******
solar panel250w Poly crystall217345465250******
batteryGel-12v 200Ah1682368400******
Cable(pv)4mm pv cable216    ******
Cable(battery)BVR 6mm240    ******
Cable(output)BVR 4mm220    ******
Mounting brackethot dip galvanized Carbon steel5250    ******
       Total8024

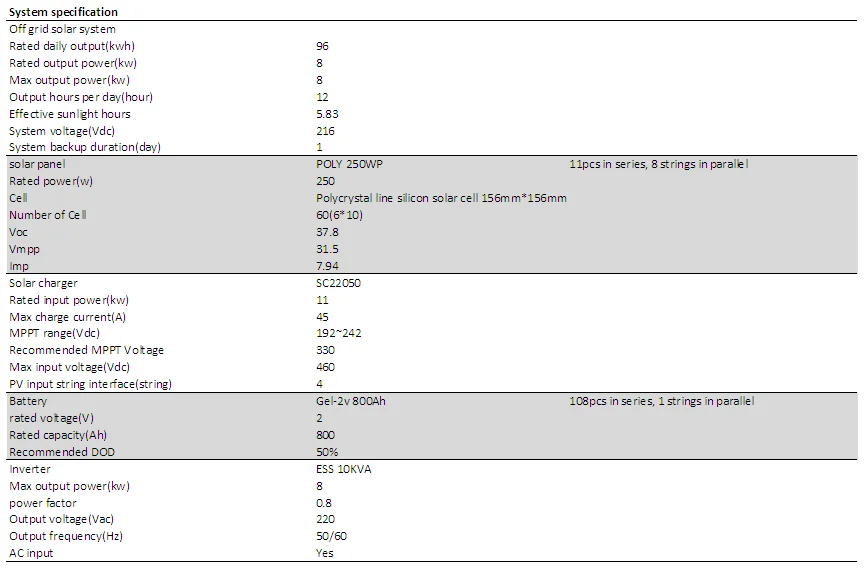

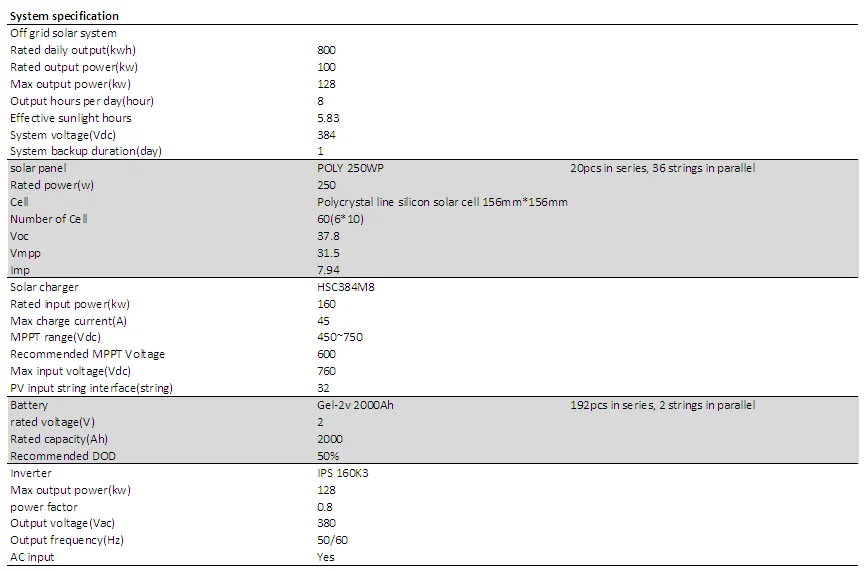

System diagram/specification

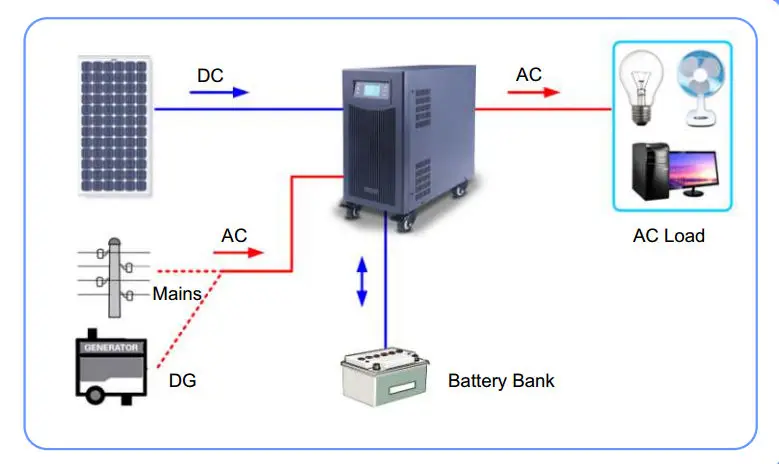

1.  single phase 200w to 5000w

XPI

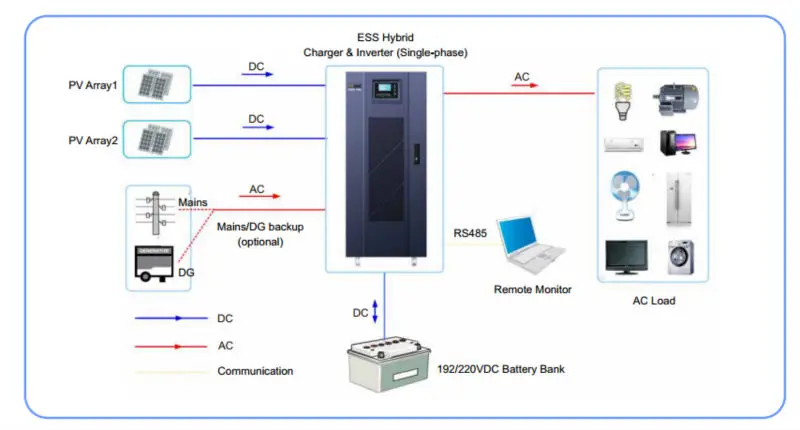

2. Single phase 5000w to 16kw

ESS

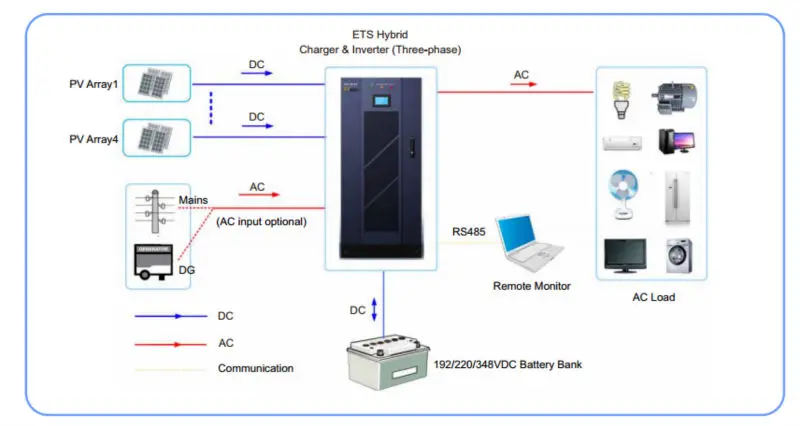

3. Three phase 8kw to 48kw

ESS off grid

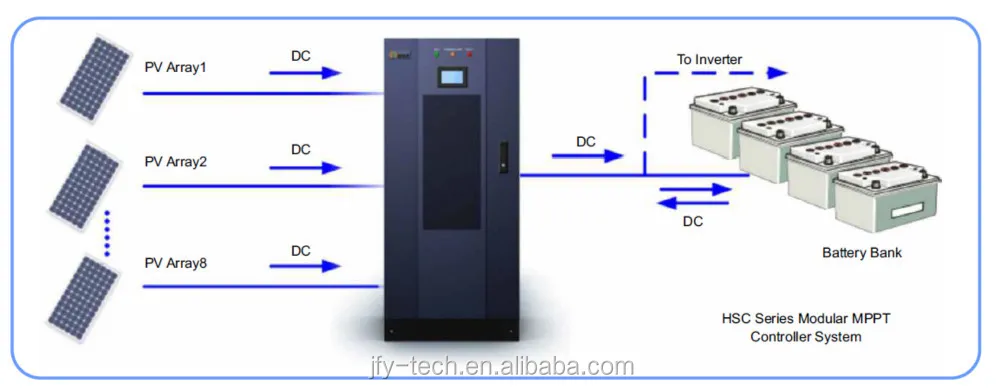

4.Three phase 48kw to 160kw



V$AD%72O{[7P8Z5_TDC68TI4K}VN]N8{O)Y[EJP[JAE))W

3

Company Information

Shenzhen JFY Tech Co.,Ltd is a prefossional solar inverter manufacturer in China.

Our export amount for string inverters ranked the TOP3 in China according the China customs data in 2013.

1.Our products include:

· Grid Connected Solar Inverter : 1.1KW to 1.26MW

· Off-Grid Solar Inverter : 0.5KVA to 160Kw

· Solar Pump inverter  : 400W to 75KW

· UPS : 400VA to 400KVA

· Accessories : Wifi monitor software ,PV combiner box



2.Certifications

 IEC for India ,SAA for Australia ,CE & TUV for Europe, G83/G59 for UK ,EN50438 for Denmark ,C10-11 for Belgium etc .



3.Gurantee

With 5 and 10 years warranty

With warehouse and service center in Australia ,UK ,Denmark ,Netherland ,Thailand etc



4.Good Quality

Main components are imported from USA ,Japan ,Germany



5.Competitive price
