JFY 200w 500w 1000w 2000w 5000w 10kw 20kw 30kw 50kw 100kw 120kw 160kw off grid solar system
solar power system
solar energy system
As a leading on/off solar inverter manufacture in China, JFY is cooperating with leading solar panel and storage battery manufacture in China to offer total off grid solar system with best use of solar panel/battery. The off grid solar system could be used where there is not enough city power but with enough sunlight. Availble output power power could be from 200w to 160kw, AC 220v/230v single phase, 380v/400v/415v three phase. We could design the system for you according to your requirement if you could tell us following information:
1. Load working voltage/phase/frequency
2. Maximum load power( must inform us once there is any load with motor, Eg: air-conditioner, fridge, pump)
3. Load working hours per day
4. Autonomy days/ battery backup days
Demo system proposal:
| System requirement | ||||||||
| Output phase | Singple phase | Output voltage(v) | 220 | |||||
| Linear load power(w) | 3000 | System voltage(v) | 96 | |||||
| Inductive load power(w) | 0 | Max power(w) | 3000 | |||||
| working hours perday(h) | 6 | Total Power(w) | 3000 | |||||
| Installation country | Philippines | sunlight hours perday | 5.59 | |||||
| Backup days(day) | 1 | |||||||
| Bypass AC input(optional) | Yes | |||||||
| Items | Description | quantity | series | parallel | required | support | price(usd) | amount(usd) |
| inverter | XPI-4.0KVA | 1 | *** | *** | ||||
| solar charger | Built-in in XPI-4.0KVA | 1 | *** | *** | ||||
| solar panel | 250w Poly crystall | 21 | 7 | 3 | 4546 | 5250 | *** | *** |
| battery | Gel-12v 200Ah | 16 | 8 | 2 | 368 | 400 | *** | *** |
| Cable(pv) | 4mm pv cable | 216 | *** | *** | ||||
| Cable(battery) | BVR 6mm2 | 40 | *** | *** | ||||
| Cable(output) | BVR 4mm2 | 20 | *** | *** | ||||
| Mounting bracket | hot dip galvanized Carbon steel | 5250 | *** | *** | ||||
| Total | 8024 | |||||||
System diagram/specification
1. single phase 200w to 5000w
2. Single phase 5000w to 16kw

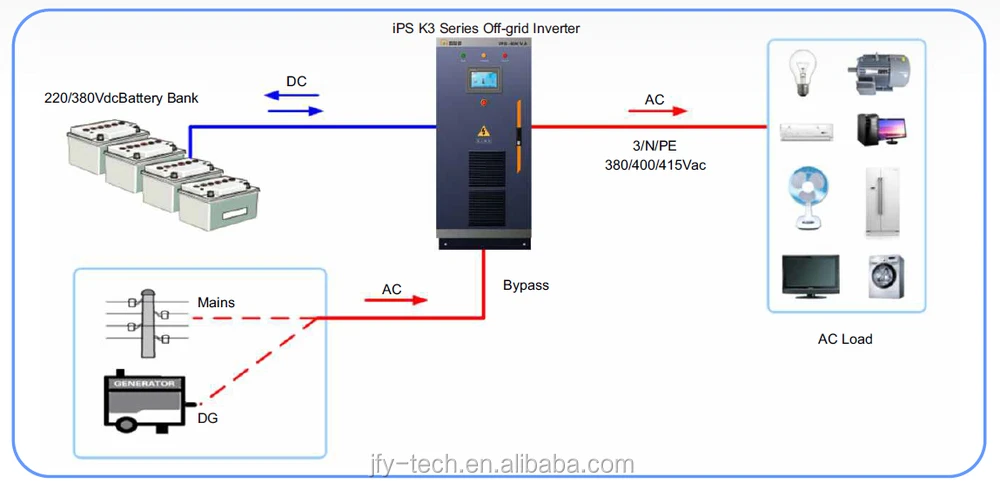

3. Three phase 8kw to 48kw
4.Three phase 48kw to 160kw
Shenzhen JFY Tech Co.,Ltd is a prefossional solar inverter manufacturer in China.
Our export amount for string inverters ranked the TOP3 in China according the China customs data in 2013.
1.Our products include:
· Grid Connected Solar Inverter : 1.1KW to 1.26MW
· Off-Grid Solar Inverter : 0.5KVA to 160Kw
· Solar Pump inverter : 400W to 75KW
· UPS : 400VA to 400KVA
· Accessories : Wifi monitor software ,PV combiner box
2.Certifications
IEC for India ,SAA for Australia ,CE & TUV for Europe, G83/G59 for UK ,EN50438 for Denmark ,C10-11 for Belgium etc .
3.Gurantee
With 5 and 10 years warranty
With warehouse and service center in Australia ,UK ,Denmark ,Netherland ,Thailand etc
4.Good Quality
Main components are imported from USA ,Japan ,Germany
5.Competitive price
