JFY solar conbiner box, intelligent pv combiner box,anti reverse combiner box, with IP65 protection comunication port RS485

FOB Reference Price:Get Latest Price
US $0-800 / Unit | 5 Unit/Units (Min. Order)
Supply Ability:
5000 Unit/Units per Month
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JFY
Model Number:
SCR/SDR
Specification:
Normal
Work Time (h):
24h/day
input voltage:
1000v
input string:
8/10/12/14/16
SIZE:
420*200*590 (mm)
COMMUNICATION:
RS485
weight:
20kg
IP level:
IP65
COLOR:
white
OEM service:
supported
Packaging & Delivery
Packaging Details
Export standard packing in cartons or on pallets
Delivery Time
Shipped in 0 days after payment



Product Description



Description

  1. For large scale PV generation system, combiner box can reduce
  2. the cables between PV modules and inverters, increase reliability
  3. of system and make maintenance easier. PVCB series combine
  4. box is designed with high performance and reliability, provides
  5. total system solutions with our gird-tied inverters. It ensures safety
  6. of PV system and reduces the installation time.

Features

  1. Remote monitor, RS485 communication (optional)
  2. Simplest installation of cables
  3. Comply with the requirement of outdoor installation
  4. Wide DC input voltage, maximum input voltage 1000VDC
  5. Special DC fuse for PV system
  6. Special SPD for PV system
  7. Easy to maintain
  8. Customized on demand (dimension, strings, DC fuse etc)

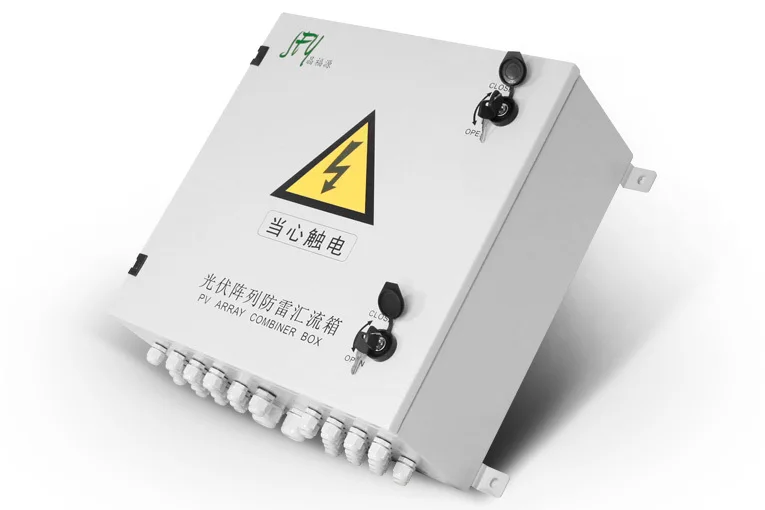

  9. PV Combiner Box (PVCB-8M/10M/12M/14M/16M)



System Connect Diagram










Parameters



ModelPVCB-8MPVCB-10MPVCB-12MPVCB-16M
Max DC Input Voltage(Vdc)1000
Number of Input String(A)8101216
Current per DC Fuse of String10/15
Output TerminalPG21
Protection LevelIP65
Environment Temperature()-25~60
Environment Humidity0~99%
Output DC BreakerYes
Lighting ModuleYes
String Current InspectionYes
SPD Failure InspectionYes
Output DC Breaker InspectionYes
PV input reverse-polarity protectionDiode(Optional)
CommunicationRS485
Dimension(W×H×D mm)400*200*420460*200*470460*200*470460*200*590
Weight15151820



PVCB-14 is also could be offered.
