JFY XPC Online UPS 3000VA 96VDC battery voltage, 220V/230V/240V AC output

FOB Reference Price:Get Latest Price
US $100-500 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OVERON UPS
Model Number:
XPC-1103L
Phase:
Single Phase
Protection:
AC input overvoltage, DC input low voltage and surge protection
Weight:
16KG
Output Voltage:
110/220v±3%
Type:
On-line
Application:
Security / Monitoring / Alarm
Color:
Black
Battery voltage:
96V
Packaging & Delivery
Packaging Details
each in a export box
Port
SHENZHEN
Lead Time :
10-30DAYS, depend on quantity

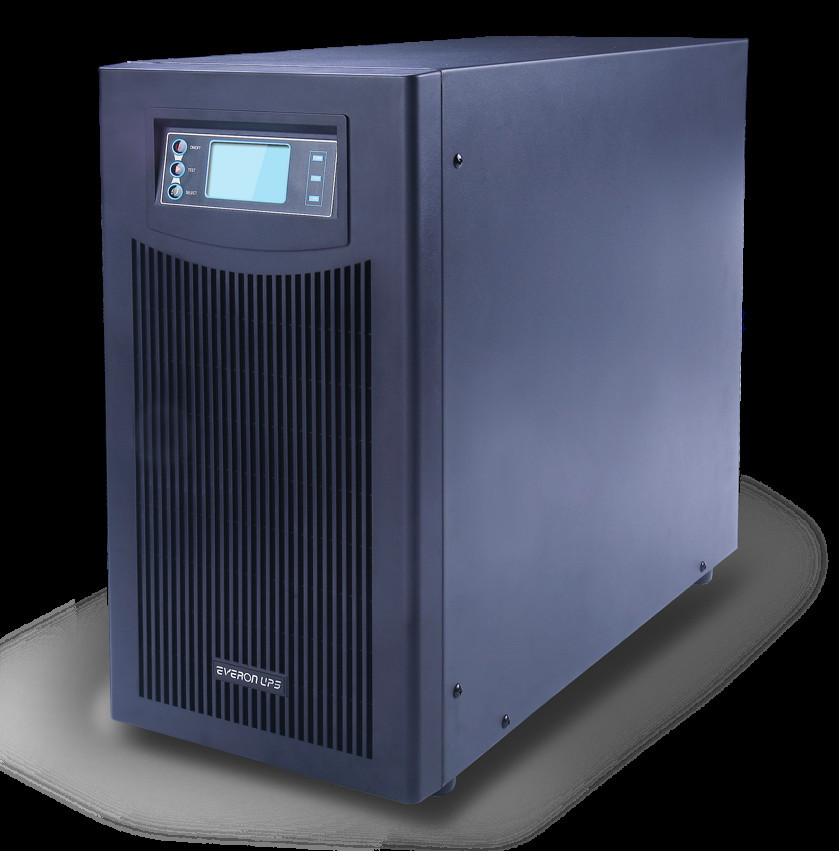

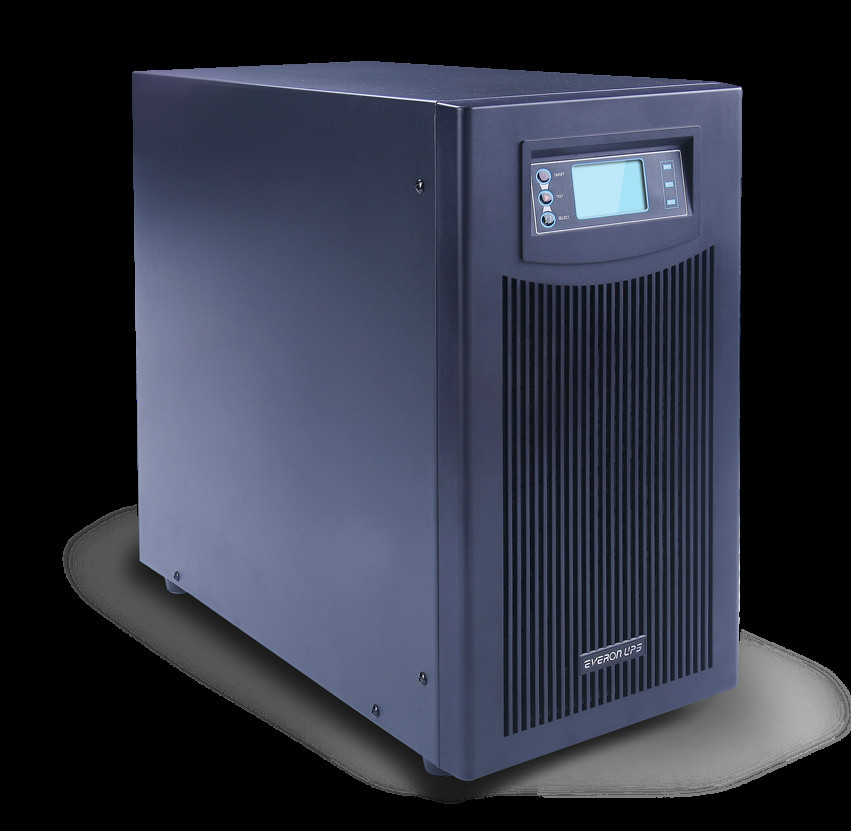

JFY XPC Online UPS Single Phase 3000VA 96VDC battery voltage, 220V/230V/240V AC output



1. Features:

> True onlin double conversion completely isolates the load from various grid faults and pollution

> Digital control technology provides high performance and system reliability.

> Advanced IGBT-based the latest rectifier and inverter technology, high input power factor and low output harmonic.

> Extra-wide input voltage and frequency range adapts adverse gird environment, compatible with diesel generator.

> Intelligent battery management directly checking and setting charge and setting charge and discharge of battery on LCD

   extends battery life.

> Direct DC cold start function offers emergency on UPS by battery without utility power

> Large LCD display monitor various real-time information at a glance.

> Multiple monitoring and alarm functions availbale with dry contact of common alarms and RS232 for remote monitoring and

   SNMP card(optional) for web-based monitoring.



2. Specifications:



MODELXPC 1101XPC 1101LXPC 1102XPC 1102LXPC 1103XPC 1103L
Rated Power1KVA/800W2KVA/1600W3KVA/2400W
INPUT
PhaseL+N
Input Voltage(110±5 to 296±5)VAC
Input Frequency(45±0.5 to 55±0.5)Hz
Input PF>0.98
Bypass voltage(80±5 to 264±5)VAC
OUTPUT
Output Voltage220VAC(1±2%)
Output Power Factor0.8
Output Frenqency45Hz~55Hz, same with utility power; <45Hz and >55Hz, lock 50Hz
Battery mode
:50/60(1±0.2%)Hz
THDTHD<3% (linear load);THD<5% (Non-linear)
Transfer TimeNormal to battery mode: 0ms
Between Battery modeand normal mode: <4ms
Overload Capability105±5%Load150±5%:30s to bypass;
>150±5%
:300ms to bypass;
BATTERY
Battery Voltage36Vdc72Vdc96Vdc
Battery Type7AH/12V× 3pcs7AH/12V× 6pcs7AH/12V× 8pcs
Backup Time (Full Load)>5min(depends on battery capacity for L type)
Charging Current1A/3A,4A,5A,6A,7A setable(L type)
SYSTEM
Efficiency>92%
CommunicationRS-232 + Intelligent Slot
RestartAfter turing off due to cut off voltage of battery, UPS will restart
when voltage is in (170±5~286±5Vac) and freqency is in (46~54Hz).
Noise (1m front)<45dBA<50dBA
Operation Temperature0°C to 40°C
Humidity0~95% non-condensing
Storage Temperature-40°C to 50°C
Altitude<1000m,>1000m derated1% per 100m
Dimension(W*D*H)mm145x360x210195x455x330
Weight(kg)126.527163316
*  Specification is subject to change without prior notice.
