5kw solar inverter on grid tie wall mounted

FOB Reference Price:Get Latest Price
US $350-1,200 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JingFuYuan
Model Number:
JSI-1500TL, JSL-2000TL, JSL-3000TL, JSL-3600TL, JSL-5000TL, JSL-6000TL
Output Power:
1 - 200KW
Output Type:
Single
Size:
345*162*354mm
Weight:
12KGS
Input Voltage:
100-500V DC
Output Voltage:
220V/240V AC
Type:
DC/AC Inverters
Output Frequency:
50/60HZ
Output Current:
5.7~25A
color:
white
efficiency:
98%
weight:
7.5 to 20kg
output voltage:
220,230,240
phase:
single phase
cooling:
natural cooling
IP grade:
IP65
OEM:
OFFER
warranty:
5year+
display:
LCD+LED
Packaging & Delivery
Packaging Details
stander package.
Port
Shenzhen or HK
Lead Time :
1 day to 15 days depending on stock level



Detailed Product Description


Solar (PV) grid tie (grid connected) inverter

Grid tie inverter is one of the crucial parts in the PV system to feed the electricity to the public grid. Thanks to its new technology and novel algorithm,

JFY JSI series grid tie inverters is one of the most efficient and reliable grid tie inverters in the world.



Photos of the inverter



Product Main Features



Flexible

  • Suitable for indoor and outdoor applications
  • Operation temperature from  -25°C to 60°C
  • Light and compact design for each installations



High efficiency and performance

  • Efficiency up to 97.6%


User Friendly

  • Computer-free programming and monitoring function visa inverter display
  • Certified to multi inverternational standards including TUV, AS 4777, G83/1 and CE
  • Computer communication and software options
system diagram

Parameters

 MODEL(JSI)1100TL1500TL2000TL2500TL3000TL3600TL5000TL6000TL
Max. DC Input Power(W)11701750230027003660375053006400
Max DC Voltage(Vdc)450450500V550
MPPT Operating Range(Vdc)80~450100~450100~500
Number of Parallel Inputs123
Number of MPP Trackers1
Max. Input Current(A)11.7101314.5202022.527.5
Nominal Output Power(W)11001500200024903000360046006000
Max. Output Power(W)11001650220024903400360050006000
Nominal Output Current(A)6.56.58.710.81315.72026
Max. Output Current(A)5.77.910.51215.7162429.3
Nominal AC Output Voltage(Vac)230
AC Output voltage range (Vac)*190~265
AC Grid frequency range (Hz)*50±5
Power Factor (cosφ)>0.99
THDI<3%(at nominal output power)
Max.efficiency96.50%96.50%97.00%97.10%97.20%97.30%97.40%97.40%
Euro.efficiency95.40%95.50%96.20%96.30%96.40%96.60%96.80%96.80%
MPPT. efficiency99.60%99.60%99.60%99.60%99.60%99.60%99.60%99.60%
Operating Temperature(℃)-25~+60
Noise typical[dB(A)]≤20dB(A)
Operating Consumption(W)0
Electrical IsolationTransformerless
Cooling ConceptNatural cooling
Protect LevelIP65
CommunicationRS232(WiFi optional)
Dimension (W×D×H)(mm)345*152*315345*152*355345*152*385345*152*505345*162*573
Weight (Kg)1213151924
*AC grid voltage range and frequency range depend on local standards





 Certificates







Service rules









Shippment

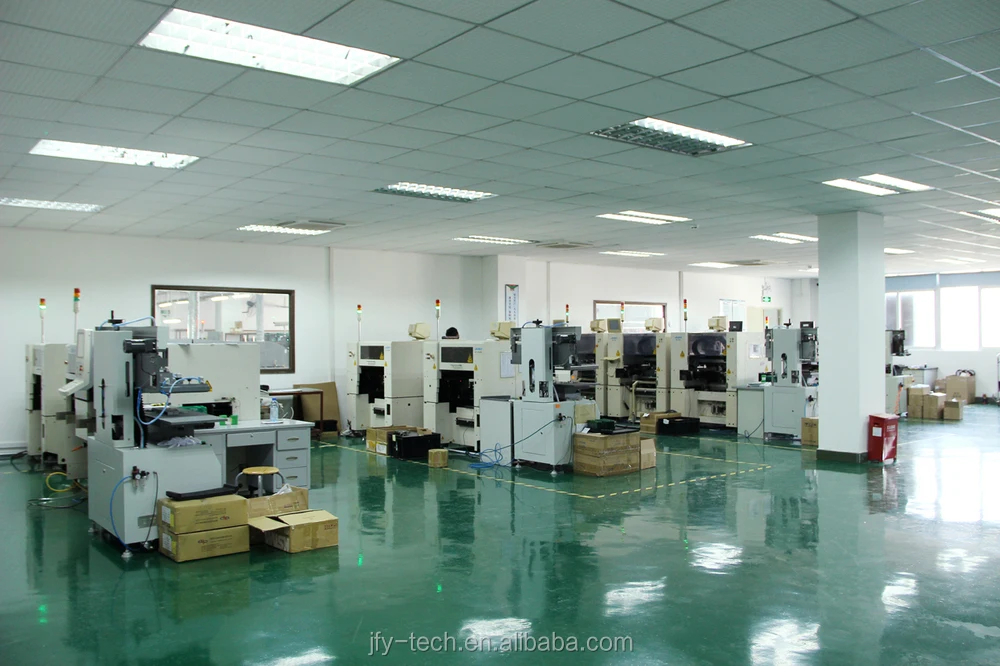

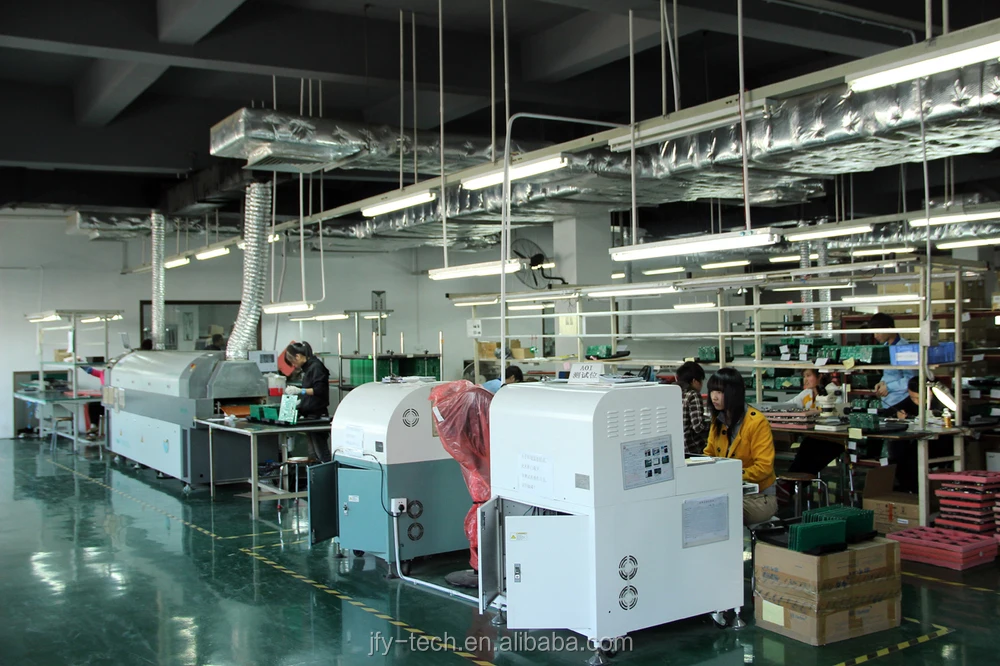

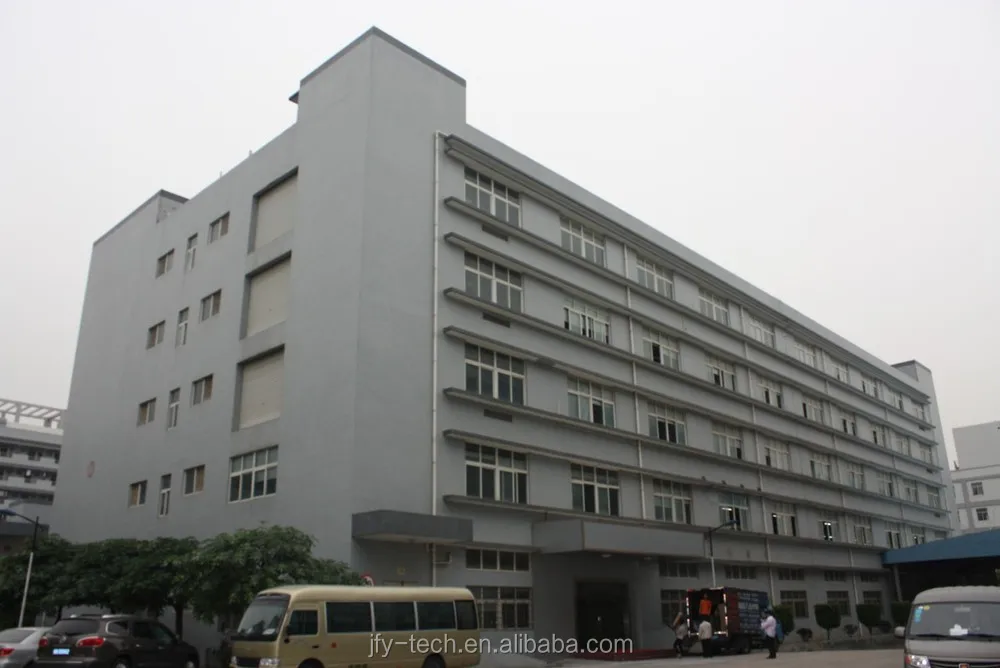

Factory
