Integrates the combiner box which contains PV-dedicated DC switch, SPD, fuse SPRING solar pumping inverter 550W

FOB Reference Price:Get Latest Price
US $10-1,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JFY
Model Number:
SPRING 550-SL/550-SLA
Output Power:
500 - 1000W
Output Type:
Single
Size:
405*297*147MM
Weight:
5KG
Input Voltage:
80V-450V
Output Voltage:
220V
Type:
DC/AC Inverters
Output Frequency:
0-50HZ/60HZ
Output Current:
5A
Inverter type:
Solar pumping inverter
Phase:
Single phase
Start working voltage:
80V
Recommend MPPT DC input voltage:
100-400V
Protection level:
IP65
Supply Ability
Supply Ability:
25000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
each in a carton
Port
Shenzhen
Lead Time :
Shipped in 0 days after payment

Solar Pumping Inverter SPRING 550-SL/SLA(A means utility input)



JFY Solar Pumping Inverter Advantages Collection:

1. JFY is professional solar inverter manufacturer and solution supplier, has engaged in solar field for many years, possesses

plenty of successful application experiences; thus its products are more stable and believable;

2. SPRING solar pumping inverter integrates the combiner box which contains PV-dedicated DC switch, SPD, fuse and other

optional accessories, easy for installation and maintenance; users needn’t buy extra combiner box, system cost will be cut down;

3. SPRING solar pumping inverter adopts “Fanless” design, has excellent sealability, protection level achieves to IP65; can be

directly applied in various rigorous conditions without extra control box/cabinet;

4. All the main components of SPRING pumping inverter are from international well-known suppliers; have high quality

and long lifetime;

5. SPRING solar pumping inverter has the advanced dynamic MPPT function, which ensures higher conversion efficiency and

longer pumping time.

6. MAX DC input voltage reaches to 900V; with same amount PV modules input, SPRING solar pumping inverter can endure

wider temperature changes;

7. Boost circuit integrated internally, which can make the PV configuration more flexible and doable, especially for low-power inverter.

8. Output frequency adjustable(0-50Hz/60Hz); can make the pump work in a suitable speed even under weak sunlight;

9. SPRING solar pumping inverter has friendly LCD HMI(Human Machine Interface), which can display figures, words and

images, easy to check and operate;

10. PV input terminals can be directly plugged into the connectors at the bottom of inverter; easy for installation and maintenance

11. Solid outer casing, high corrosion-resistance quality; compact size and good looking;

12. 2-year standard warranty, and the warranty can be extended to MAX 5 years. JFY will provide prompt and efficient support

and after-sale service.



220V Single phase Model
Model(SPRING)500SL500SLA750SL750SLA1100SL1100SLA1500SL1500SLA2200SL2200SLA
Max PV Input Power(Wp)60060011001100150015002200220033003300
Max DC Input Voltage(Vdc)450
MPPT Range(Vdc)100-400150-400200-400280-400
Input String Number1
MPPT Number1
Max DC Input Current(A)6791011
Rated Output Power(W)500750110015002200
Max Output Current(A)56.38.61014
Output AC Voltage(V)220V / Single phase
Matched Pump Voltage Range (Vac)200-240V
Matched Pump Frequency Range (Hz)0-50/60Hz
Max Conversion Efficiency97.8%
MPPT Efficiency99.9%
Operating Temperature(℃)-25~+60
Noise[dB(A)]<50dB
Night Consumption(W)0
If Electrical IsolatedTransformerless
Cooling TypeNatural
Protection LevelIP65
Communication TypeRS485/CAN/GPRS
Dimension(W×D×H)mm405*297*107
Weight(kg)5810

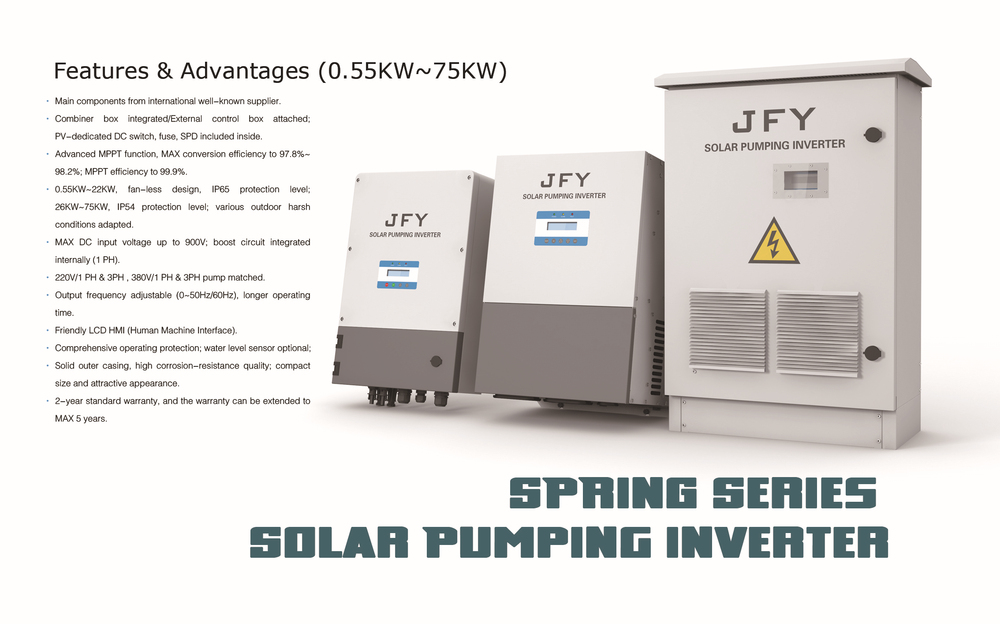

JFY SPRING Solar Pumping Inverter photo:

JFY Srolar pumping inverter.jpg

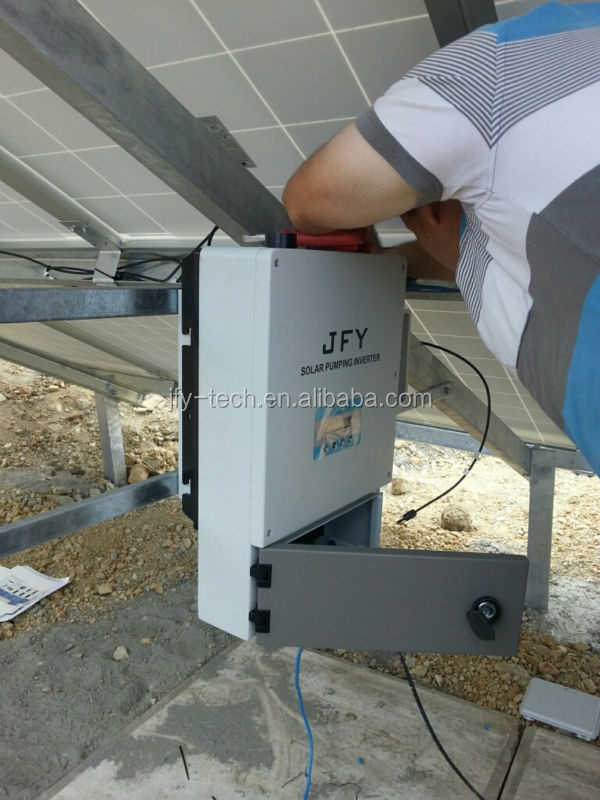

Customer installtion pictures:

IMG_20140717_170309

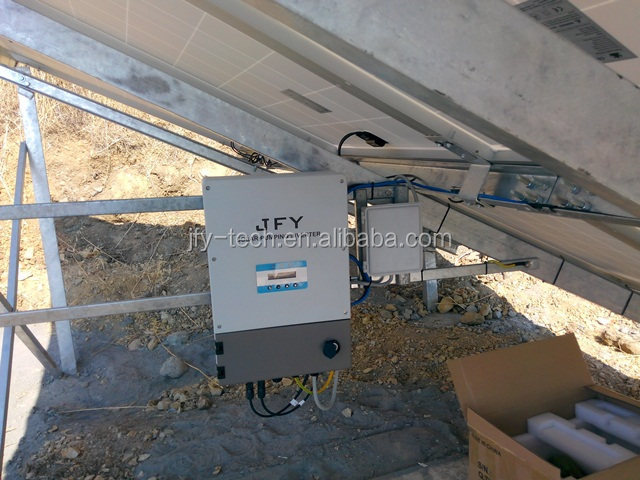

5.5 solar pumping system reference in Turkey

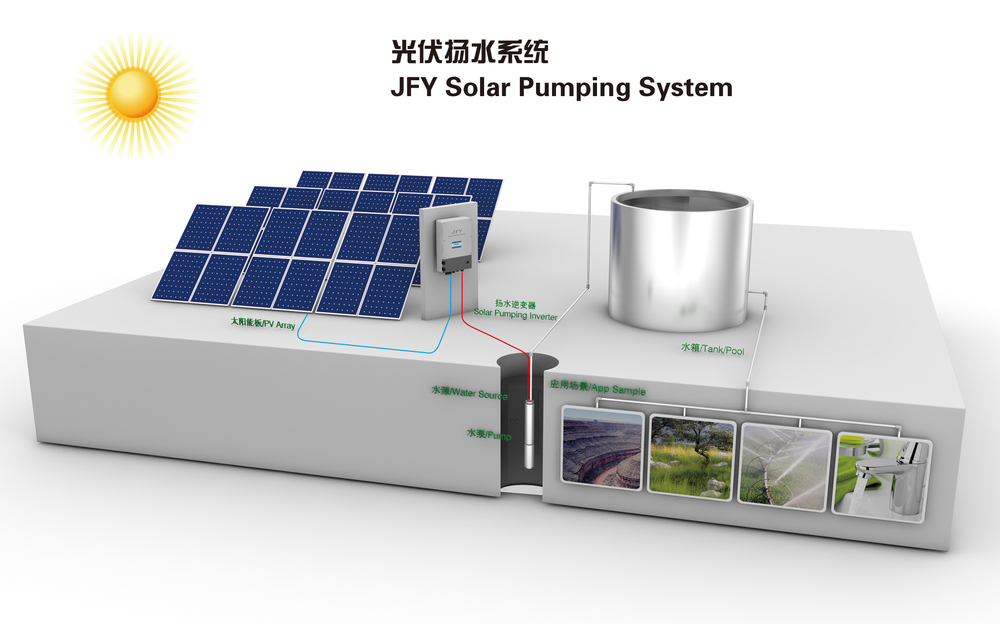

Application:




Welcome your inquiry.
