JFY 1KW solar grid tie inverter JSI-1100TL

FOB Reference Price:Get Latest Price
US $10-1,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JingFuYuan
Model Number:
JSI-1100TL
Output Power:
1 - 200KW
Output Type:
Single
Size:
345x162x354mm
Weight:
15kg
Input Voltage:
500V
Output Voltage:
220V
Type:
DC/AC Inverters
Output Frequency:
50HZ
Output Current:
10.5A
Max. DC power:
1100W
Max. DC voltage:
500Vdc
MPPT Operating range:
100~450Vdc
Max. input current (total):
13A
THDI:
<3%
Max. Efficiency:
97%
IP range:
IP65
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton,foam packing
Port
Shenzhen

Outdoor on-grid inverter



JSI-1100TL

JSI BENEFITS

           Compact size and high power density

           High speed MPPT for real time power tracking and improved energy harvesting

           Transformerless operation for highest efficiency: > 96% (>95% Euro)

           High overload capability: works up to 2200W under most ambient conditions

           Certified grid connected operation according to the international standards

           True Sine Wave Output

           Integrated RS-485/RS-232 serial communication

            Multi-language display



high efficiency solar inverter 2KW 220v JSI-2000TL,solar inverter 2kw 220v,solar smart inverters



Specification



Output Data(AC side)

Nominal output power

1100W

Max. Output power

1170W

Nominal output current

5.7A

Max. output current

6.5A

Nominal AC voltage

230Vac

AC voltage range *

180~265Vac

Nominal AC grid frequency

50Hz

AC grid frequency range*

50 ± 5 Hz

Power factor(cos φ)

>0.99

Harmonic distortion(THDI)

<3%(at nominal output power)

Efficiency

Max. efficiency

96.4%

Euro efficiency

95.4%

MPPT efficiency

99.6%

Genaral data

Dimensions (W / D / H)

345*152*315 mm

Net weight

12Kg

Operating temperature range

–25 °C ~ +60 °C

Noise emission (typical)

≤ 20dB(A)

Power consumption at night

0 W

Electrical isolation

Transformer-less

Cooling concept

Natural cooling

IP Code

IP65

Communication

RS-232

 * AC grid voltage range and frequency range depend on local standards.

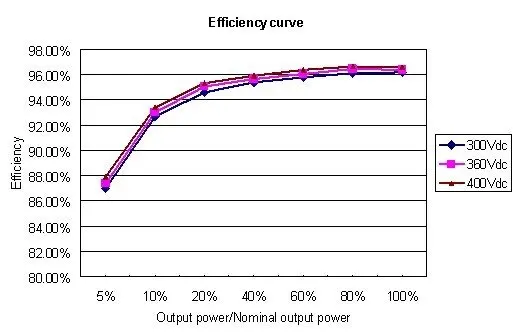

Efficiency Curve

2kw efficiency curve.jpg

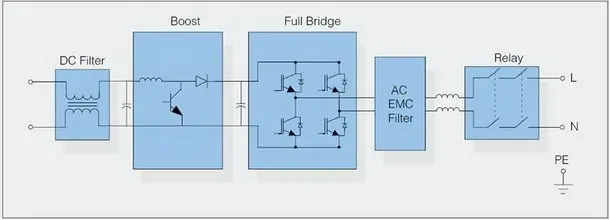

schematic diagram






Certifications






Project reference

reference 01.jpgreference 02.jpg



Company Information

Shenzhen JFY Tech Co.,Ltd is a prefossional solar inverter manufacturer in China.

Our export amount for string inverters ranked the TOP3 in China according the China customs data in 2013.

1.Our products include:

· Grid Connected Solar Inverter : 1.1KW to 1.26MW

· Off-Grid Solar Inverter : 0.5KVA to 160KVA

· Solar Pump inverter  : 400W to 55KW

· UPS : 400VA to 400KVA

· Accessories : Wifi monitor software ,PV combiner box



2.Certifications

 IEC for India ,SAA for Australia ,CE & TUV for Europe, G83/G59 for UK ,EN50438 for Denmark ,C10-11 for Belgium etc .



3.Gurantee

With 5 and 10 years warranty

With warehouse and service center in Australia ,UK ,Denmark ,Netherland ,Thailand etc



4.Good Quality

Main components are imported from USA ,Japan ,Germany



5.Competitive price






Exhibition
