1KW off grid solar power systems with battery

FOB Reference Price:Get Latest Price
US $22-9,999 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JFY
Model Number:
SolarUPS-1.0KW- LC-B
Output Power:
1 - 200KW
Output Type:
Single
Size:
380*320*760 mm
Weight:
84KG
Input Voltage:
24Vac
Output Voltage:
220Vac
Type:
DC/AC Inverters
Output Frequency:
50Hz
Packaging & Delivery
Packaging Details
Foam pack for each inverter. Anti vibration. Export standard packing in cartons or on pallets
Port
Shenzhen port
Lead Time :
7days upon receipt of payment/depends on stock level

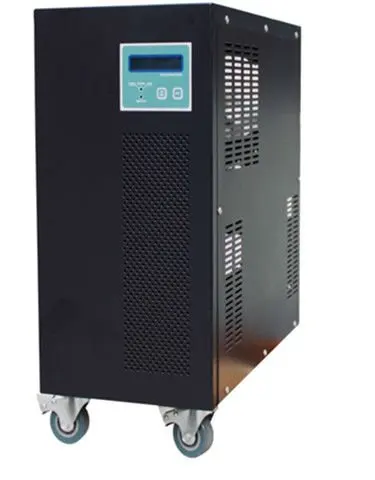

SolarUPS-1.0KW- LC-B



Outstanding performance:

1.Dual inputs design to save solar expenditure: Solar and AC utility inputs which makes it possible to back up power even in long raining days. This will greatly save the solar panel and battery investment.



2.Automatically smooth switch and Zero transfer time: Whichever of the AC input or inverter drops, the internal smart switch will smoothly transfer the load to another source, it’s uninterruptable.



A. Key features:

LCD display

2pcs 12V 100Ah battery inside

Solar input&AC220V/50Hz input

AC also chargers the battery

Output AC 1kW/1.4kVA (PF=0.7) 220V/50Hz

DC output 24V/200W

60Hz as optional

Automatically smooth transfer between two sources (AC and Inverter)



B. Specification

CHARACTERISTICS

SolarUPS-1.0KW- LC-B

                    Solar Input (Embedded solar Charger)

Max. DC Input voltage

40Vdc

Max. DC Input Current

20A

AC Embedded Grid Charger Charging Current

10A

Battery Rating

voltage

24V

Ah

2x100Ah(Internal)

AC Input

City Grid

220Vac

AC Output

KW

1KW

KvA(PF=0.7)

1.4kVA

Net Unit

Dimensions (W / D / H)

380x320x760 mm

Net weight

84Kg

Package

Dimensions (W / D / H)

480x430x820 mm

Weight

91Kg



C.Picutures







Company Information

Shenzhen JingFuYuan Tech. Co., Ltd. (Abbr. JFY), Founded in 2003,is a professional designer, manufacturer and solutions provider in power electronics field. Awarded as National High-tech Enterprise and certified to ISO9001: 2008 international quality system, JFY has 16000 m2 of production plants and R&D laboratories in Shenzhen headquarter and marketing centers at home and abroad. Devoting to being a leading supplier with best products and services, JFY offers customers the high cost-effective products and integrated energy solutions with plentiful design and production experiences. The products cover a wide range of Solar Inverter (0.75kW~1.26MW),UPS, Telecom Power Supply, Off-grid Hybrid solar Power etc. Our products have been sold to more than 100 countries and areas. Their stable operation and excellent performance have been universally recognized by users across the world.
