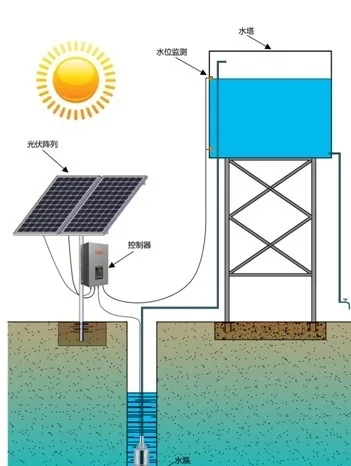

Solar water Pump system for irrigation and agriculture

FOB Reference Price:Get Latest Price
US $1-1,700 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
500 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JFY
Model Number:
Spring 11K
Specification:
Normal
Output Voltage (V):
380V
Load Power (W):
11KW
Model:
Spring 11K
Power:
11KW
Max. DC input voltage:
800V
Max. output current:
24A
Frequency:
0~50Hz
Output voltage:
3PH 380V
Weight:
15KG
Size:
528*346 *156
Packaging & Delivery
Packaging Details
General packing
Delivery Time
Shipped in 0 days after payment

Specifications

1. Efficiency up to 98%
2.Wide range of MPPT voltage
3. IP 65 & LCD display
4.Built-in DC switch
5. Grid or diesel optional

JFY  Solar water Pump Inverter 0.4K, 0.75K, 1.5K, 2.2K, 3K, 3.7K, 5.5K, 7.5K, 11K, 18K, 22K, 30K, 37K, 45K, 55K

JFY  Solar water Pump Inverter 0.4K, 0.75K, 1.5K, 2.2K, 3K, 3.7K, 5.5K, 7.5K, 11K, 18K, 22K, 30K, 37K, 45K, 55K



Product Features

1.Efficiency up to 98%
2. Suitable for pumps driven by three-phase asynchronous motor
3. MPPT and vectorized V/F control technology, fast response, high stability

4.  Wide range of MPPT voltage below 4kW solar pumping inverter, more choice of common PV
cells, advantage in system cost
5. High protection level IP65, naturally air cooling without fans, suitable for all kinds of severe
outdoor use

6. Complete motor protection function, water level detection and controlling function optional to
avoid overflow and dry pumping
7. Built-in DC switch, lightning protection cell and fuse for the distribution cell in the bottom of the
machine, opening and operating the inverter by user himself, convenient for use
8. LCD display,automatic running, setting the speed range of the pump freely according to the
actual system condition, storage of running data for 8 years

9. Rich communication interface, RS485/CAN/GPRS (optional), remote checking or controlling
system running status and running mode available
10. Grid or diesel as optional backup power supply to meet user’s all-weather water need
